IP Office Advanced Communications System

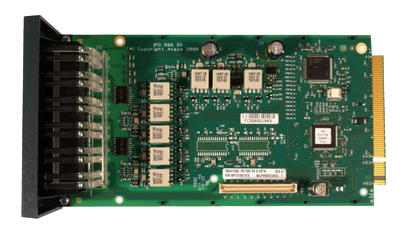

IP Office IP500 Digital 8 Station Card (700417330)

The IP Office IP500/500V2 8 Digital Station Card connects up to 8 of the IP Office supported Digital Sets. The card can be fitted with an IP Office Daughter Trunk Card Requires IP Office Release 4.0 and Higher.

  • Connect up to 8 IP Office-supported Digital Sets (except the 44xx Series sets)
  • Can be fitted with IP Office 500 Daughter Trunk Card
  • Maximum of 3 per IP500 or IP500V2 Control Unit
  • Accepts 1 IP Office 500 Trunk Daughter Card of any type
  • Requires Release 4.0 or higher software

IP Office IP500V2 Combination Card ATM

Item #: 700476013

The IP Office IP500V2 Combination Card ATM combines multiple station and trunk ports with voice over IP resources in a single cost effective card.

  • 4 analog CO lines on ATM4U
  • 6 Digital Station ports
  • 2 Phone ports (Analog)
  • 10 VCM channels
  • IP500V2 only
  • Maximum of 2 Combination Cards per IP500V2
  • IP Office minimum software level of 6.1(20) or 7.0(12)

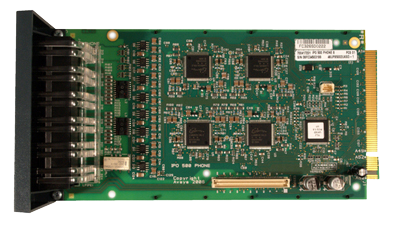

IP Office IP500 Phone 2 Extension Card

The IP Office IP500 Phone 8 Extension Card connects up to 8 Analog Station Sets to your IP500 or IP500V2.

  • Connect up to 8 Analog Station sets
  • Can be fitted w/IP Office 500 Daughter Trunk Card
  • Maximum of 4 per IP500 Control Unit
  • Accepts 1 IP Office 500 Trunk Daughter Card of any type
  • Requires IP Office Release 4.0 or higher software

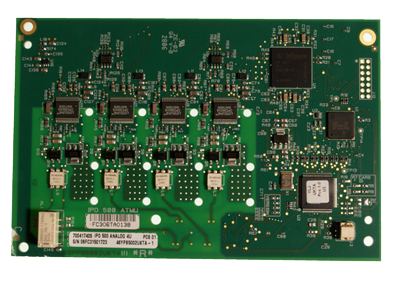

IP Office IP500 4 Port Analog CO Card (ATM4U)

The Avaya IP Office Analog Trunk Card is a daughter card that supports 4 CO Lines.

  • Can be added to IP500 Digital Station Card, IP500 Analog Phone Base Card, or IP500 VCM Card
  • Same support on the IP500V2
  • Allows that card to then also support 4 Analog Loop-Start Trunks
  • Also provides 1 Analog V.32 Modem
  • When fitted to IPO 500 Analog Phone 8 Base Card, the combination supports 1 Power Failure Extension to Trunk Connection

IP Office IP500V2 Extension Card ETR

The IP Office IP500V2 Extension Card ETR supports 6 ETR ports on specific phones.

  • Supports Euro-Style Partner 6, Partner 18, Partner 18D, Partner 34D
  • Supports Partner Series 2 6D, 18D+, 34D
  • Also supports 3910/3920 wireless phones
  • Supported on IP Office Essential Edition ? PARTNER Version only
  • IP500V2 only
  • IP500V2 supports maximum of 3 Extension Cards per system

IP Office IP500 Dual T1/PRI Card

The Avaya IP Office IP500 Dual & IP500V2 T1/PRI supports 1 T1/PRI circuit.

  • Supported by all releases of the IP500 & IP500V2
  • Supports up to 24 T1/PRI Channels
  • Comes with 8 channels already enabled
  • Additional T1 and PRI Channels enabled by RFA
  • Also supports E1
  • Max of Four (4) per IP500 & IP500V2 system
  • PRI daughter cards sits on VCM or extension base card

IP Office IP500 T1/PRI Card

The Avaya IP Office IP500 Dual T1/PRI Card (7100417462) is for the IP500 and IP500V2 controller and supports 2 T1 or PRI circuits.

  • For the IP Office IP500V1 and IP500V2 Controllers
  • Each dual T1/PRI card supports 2 T1's or 2 PRI's
  • 8 PRI channels per port (16 total) are pre-activiated
  • Enable additional channels with RFAs (see below)
  • This daughter card can reside on a VCM or extension card
  • Supports Call Control for IP Office applications

Avaya IP500 4 Port Expansion Card

Item #: 700472889

  • Avaya IP Office IP500 4-Port Expansion Card
  • Adds 4 additional expansion ports to the IP500 control unit
  • Card is only supported in slot 4
  • Includes 4 yellow interconnect cables (2 meters)

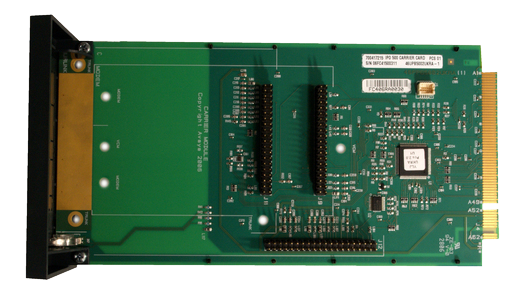

IP Office IP500 Legacy Card Carrier

Item #: 700417215

Supports, one each, of the following IP400 Cards:

  • PRI T1
  • Dual PRI T1
  • NA E1 PRI
  • PRI 30 E1 (1.4)
  • Dual PRI E1
  • PRI 30 E1R2 RJ45
  • Dual PRI E1R2 RJ45
  • ANLG 4 UNI
  • BRI-8 (UNI)
  • VCM 4
  • VCM 8
  • VCM 16
  • VCM 24
  • VCM 30
  • Maximum of 2 per IP500 Control Unit

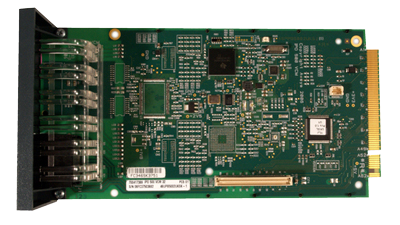

Avaya IP500V2 VCM32 V2 (700504031)

The Avaya IP Office VCM32 V2 is a new addition with the introduction of Release 8.1.

The VCM32 V2 supplies 32 VCM channel and no end point licenses. It is supports by IP Office Release 8.1 and will be support with earlier releases via a service pack update.

The Avaya IP Office VCM32 V2 is support by both SME and Server Editions in the IP500V2 controller.
