IP Office Advanced Communications System

Digital Sets

Avaya 9504 Digital Phone

The Avaya 9504 Digital phone offers the latest in design and is perfect for the Everyday phone user.

4 Line Display
12 Programmable Buttons
10 Fixed Feature Buttons
Speakerphone
5 Way Navigation Cluster
Headset Jack
Digital Phone for IP Office
Paperless labeling
Supported on IP Office Release 7.0(5) and above

For more information:

Avaya 9504 Quick Reference Guide
Avaya 9504 Series Brochure


Avaya 9508 Digital Phone

The Avaya 9508 Digital Phone for Avaya IP Office is the perfect phone for busy users, including managers and executives.

4 Line Display, Monochrome/Backlit
15 Fixed Feature Buttons
24 Programmable Features
Speakerphone
Headset Jack
Supported on IP Office Rel 7.0(5) and higher
Digital Phone
Desk or Wallmount
Supports up to 3 BM12 (external power required)

For more information:

Avaya 9508 Quick Reference Guide
Avaya 9508 Series Brochure

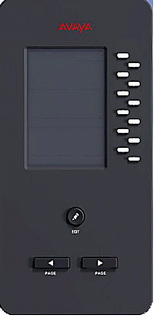

Avaya BM12

The Avaya BM12 increases the functionality of your 9508, 9608, 9611G and 9641G phones on IP Office.

Connects to 9508, 9608, 9611G and 9641G Phones
12 Dual status LEDs
Edit button
2 Pages of 12 buttons, for 24 total buttons
Maximum of 3 BM12 per phone
Maximum of 32 BM12's per IP Office system
Requires 1151C1 power when used with 9508 phones
Max of 32 BM12's can be installed on a single IP Office
Requires IP Office Release 8.0(42) or higher

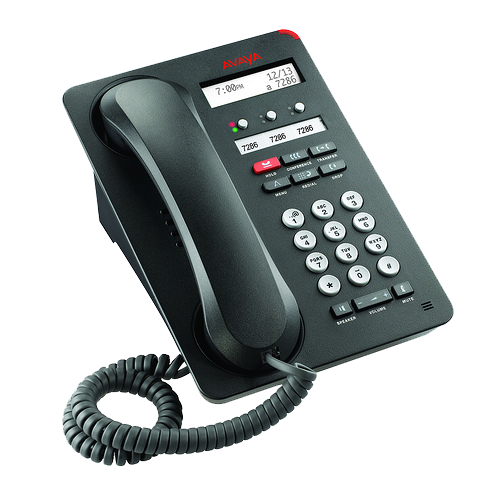

Avaya 1403 IP Office Digital Phone

The Avaya 1403 IP Office Digital Phone provides easy, user-friendly access to the most common functions needed for everyday use. The Avaya 1403 is compatible with IP Office Release 6.0 and higher.

Ideal for common areas and walk-up users
2 row x 16 character white backlit display
Supports 3-line appearance w/dual LEDs
Fixed feature buttons: volume up/down, mute, speaker, menu, hold, conference, transfer, drop, redial
2-way speakerphone
Hearing Aid Compatible
Message Waiting Indicator
8 personalized ring patterns
Upgradeable firmware
Connects to Digital Station (DS) port
Power source: supplied by phone system
Reversible wedge stand for desktop and wall-mount use
Compatible with IP Office Release 6.0

For more information:

Avaya 1403 Quick Reference Guide
Avaya 1400 Series Brochure

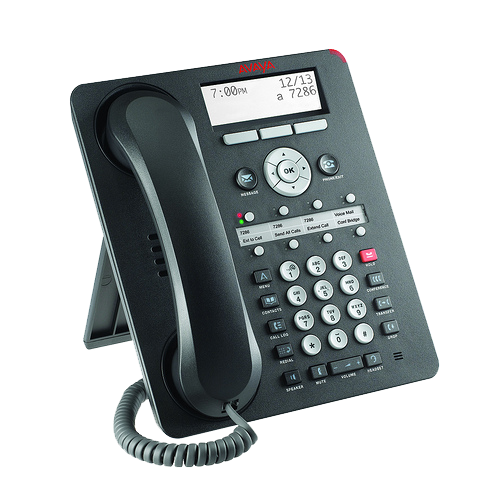

Avaya 1408 IP Office Digital Phone

The Avaya 1408 IP Office Digital Phone offers a full suite of features at a very competitive price. The Avaya 1408 is compatible with IP Office Release 6.0 and higher.

For light to moderate everyday telephone users
3 row x 24 character white backlit display
Supports 8-line appearance w/dual LEDs
Fixed feature buttons: volume up/down, mute, speaker, menu, hold, conference, transfer, drop, redial, headset, Contacts, Call log button, Quick access Voicemail Message button
3 contextual softkeys
Four-way navigation cluster button
Menu with access to most often used features (e.g., Call Forwarding, Park, Settings, etc.)
2-way speakerphone
Headset jack
Hearing Aid Compatible
Message Waiting Indicator
8 personalized ring patterns
Multiple language support
Upgradeable firmware
Connects to Digital Station (DS) port
Power source: supplied by phone system
Dual position flip stand; desk or wall mountable
Compatible with IP Office Release 6.0

For more information:

Avaya 1408 Quick Reference Guide
Avaya 1400 Series Brochure

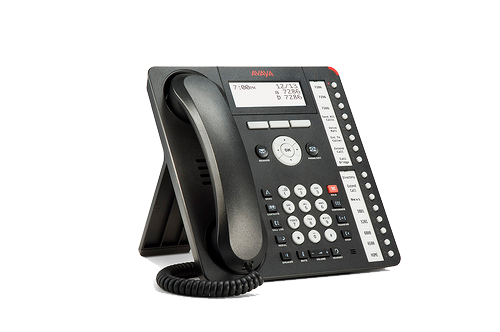

Avaya 1416 IP Office Digital Phone

The Avaya 1416 IP Office Digital Phone is designed for the most communications-intensive users, such as receptionists, assistants, and managers. The Avaya 1408 is compatible with IP Office Release 6.0 and higher.

4 row x 24 character adjustable white backlit display
Supports 16-line appearance w/dual LEDs
Supports up to 3 32-button expansion modules
Fixed feature buttons: volume up/down, mute, speaker, menu, hold, conference, transfer, drop, redial, headset, Contacts, Call log button, Quick access Voicemail Message button
3 contextual softkeys
Four-way navigation cluster button
Menu with access to most often used features (e.g., Call Forwarding, Park, Settings, etc.)
2-way speakerphone
Headset jack
Hearing Aid Compatible
Message Waiting Indicator
8 personalized ring patterns
Multiple language support
Upgradeable firmware
Connects to Digital Station (DS) port
Power source: supplied by phone system
Dual position flip stand; desk or wall mountable
Compatible with IP Office Release 6.0
Part #7009869, 1416D02A

For more information:

Avaya 1416 Quick Reference Guide
Avaya 1400 Series Brochure


Avaya DBM32 Button Module

The Avaya Digital Button Module DBM32 provides 32 additional buttons with dual LEDs to the Avaya 1416 Digital Phone.

Up to 3 DBM32s can be connected to an Avaya 1416 phone, for a total of 112 line/feature keys or speed dial buttons
DBM32 requires a 1151C1 Power Supply (see below)
The total number of DBM32/BM32 button modules supported on one IP Office system is 32, subject to the total system limits
For "Navigator" users - receptionsists, assistants, managers
Requires 6.0(18) or higher software

For more information:

Avaya 1400 Series Brochure
